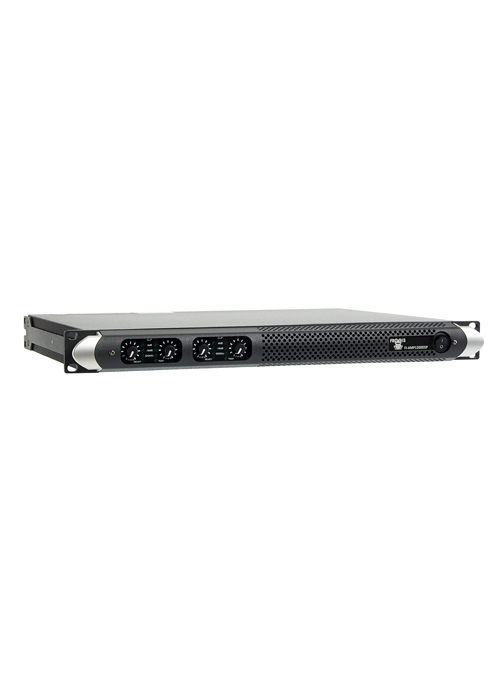

FI-AMP1200DSP
4 channel DSP power amplifier, 4 x 1200W @ 8Ω
The FI-AMP1200DSP is a state of the art 4 channel Class D amplifier include comprehensive signal processing providing 1200 Watts per channel at 8Ω. It provides 4 x front panel access volume control allowing zone level adjustments directly from the Amplifier. The FI-AMP1200DSP is designed for use in a wide variety of installations: from a simple setup in a bar/ restaurant or a corporate meeting room to being a part of a larger audio system in a theater. Pairs of channels may be individually configured to run in Stereo, Parallel or Bridged mode
Features
Applications
Specifications
- Includes comprehensive signal processing
- Lightweight portable 1U ultra-thin design with 4 channels
- 1200 Watts per channel at 8Ω
- Intuitive, user-friendly, front panel interface
- Four channel separate balanced line inputs by XLR Female
- Four Speakon (4 contacts) output connectors
- Very high power density in 1U rack height
- Four channel separate volume control
- Comprehensive protection and monitoring functions
- Four channel separate status indicators include signal, peak and protection
- Amplifier with delay start system, protect the speakers from shock and damage
- Class-D design for optimum efficiency
- Superior sound quality performance
- From bars, restaurants, retail stores, church to corporate meeting rooms and auditoriums
- Sound reinforcement applications with high power density and good sounding requirements
- Portable or rental industry PA system
| Specification | |
| Outputs | @ 8Ω 4 x 1200 W @ 4Ω 4x 1500 W Bridged 2500W@ 8Ω |
| Working Voltage | 90V-264V, 50-60Hz |
| Input sensitivity | 2.3V |
| Gain Level | 32dB |
| Frequency response | 20 Hz to 20 KHz (+/-0.5dB)@1W, 8Ω |
| THD + N | <0.05% from 0.1W to 1/2 power |
| DIM100 | <0.02% from 0.1W to 1/2 power |
| S/N Ratio | >100dB（20Hz-20Khz, A weighted |
| Channel separation | >70dB @ 8 Ω / 1 KHz |
| Input impedance | 10 KΩ (Bal.) |
| Damping Factor | >5000@100Hz |
| Protection | DC, Short circuit, Overheat, Soft start |
| Controls | |
| Front | On/ Off Switch, 4 x Volume Ctl. |

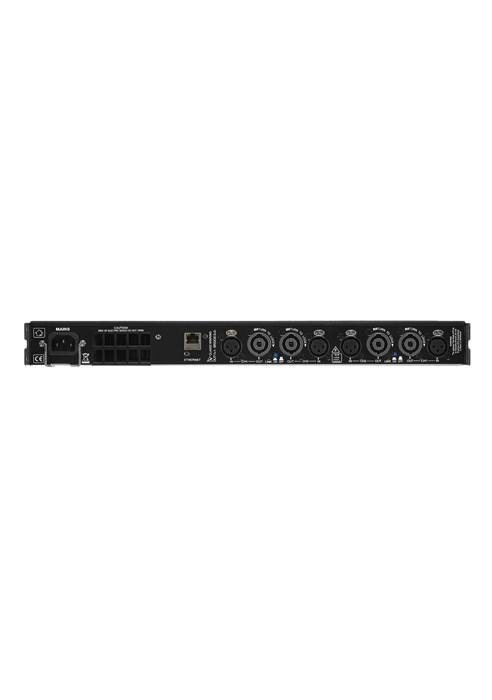

| Rear | Ground lift, Input link mode, Bridge mode (pair) |
| Input connectors | 4 x XLR (Bal.) |
| Ouput connectors | 4 x Speakon 4 contacts (1+/1- 2+/2-) |
| Dimention | 1U - 19 |
| Dimention | W483 mm - 19" H44,45 mm - 1,8" D358 mm - 14" |
| Weight | 8 Kg – 17.6 Lbs |
