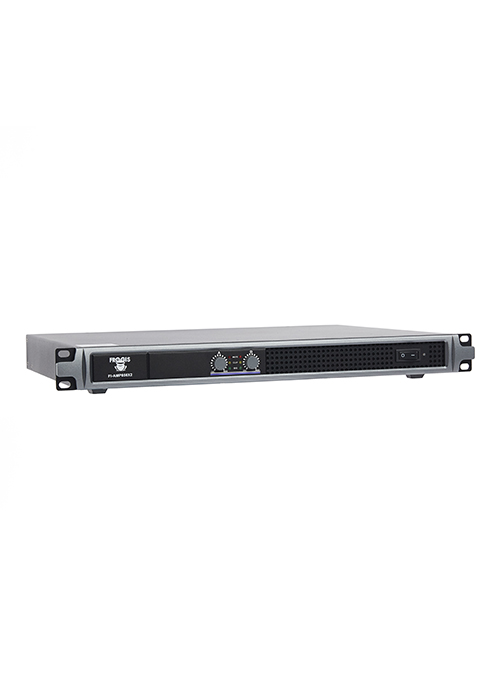

FI-AMP850X2
2 Channel Class D Power Amplifier, 2 x 850 W @ 8Ω
The FI-AMP850X2 is a state of the art 2 channel Class D amplifier providing 850 Watts per channel
at 8Ω. It provides 2 x front panel access volume control allowing zone level adjustments directly
from the Amplifier.
The FI-AMP850X2 is designed for use in a wide variety of installations: from a simple setup in a bar/
restaurant or a corporate meeting room to being a part of a larger audio system in a theater.
Pairs of channels may be individually configured to run in Stereo, Parallel or Bridged mode.
Features
Applications
Specifications
- Lightweight portable 1U ultra-thin design with 2 channels
- 850 Watts per channel at 8Ω
- Intuitive, user-friendly, front panel interface
- Two channel separate balanced line inputs by phoenix connectors
- Two Speakon (4 contacts) output connectors
- Very high power density in 1U rack height
- Two channel separate volume control
- Comprehensive protection and monitoring functions
- Two channel separate status indicators include signal, peak and protection
- Amplifier with delay start system, protect the speakers from shock and damage
- Class-D design for optimum efficiency
- Superior sound quality performance
- From bars, restaurants, retail stores, church to corporate meeting rooms and auditoriums
- Sound reinforcement applications with mid power density and good sounding requirements
- Portable or rental industry PA system
| Output Power | |
| @ 8Ω | 2 x 850 W |
| Other Parameters | |
| Type | D |
| Frequency response | 20 Hz to 20 KHz (+/-3dB) |
| THD + N | <-0.05% @ 8 Ω / 1 KHz |
| Conversion rate | 40V / us |
| S/N Ratio | >90 dB |
| Damping factor | >600 @ 8 Ω |
| Channel separation | >100 dB @ 8 Ω / 1 KHz |
| Input resistance | 20 KΩ (balanced) / 10 KΩ (unbalanced) |
| Input sensitivity | 1.0 Volt |
| Protection | DC protection, short circuit protection, overheat protection, soft start |
| Control | |
| Front Panel: | On/ Off switch, 2 x volume knob |
| Back: | Ground disconnec |
| Input | 2 x Phoenix jacks (balanced input) |
| Output | 2 x Speakon 4 pins (1+/1- 2+/2-) |
| Size | 1U - 19" |
| W | 483 mm - 19" |
| H | 44,45 mm - 1,8" |
| D | 355 mm - 14" |
| Weight | 5,5 Kg - 12.1 Lbs |
