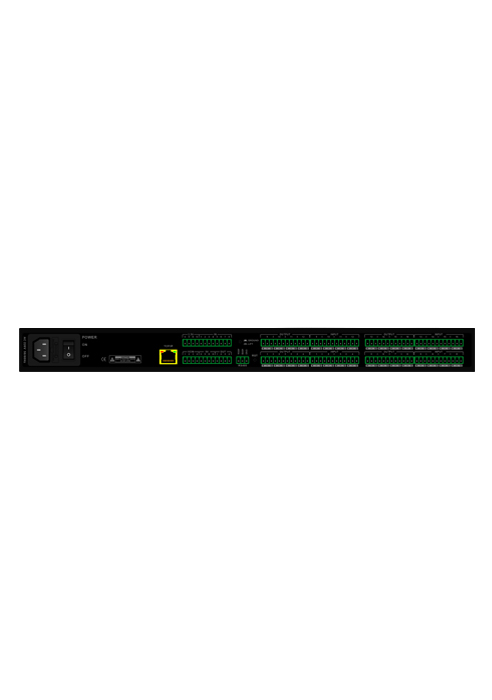

FI-DSP1616
16 Channel Audio Matrix systems
The FI-DSP1616 audio matrix system is a sophisticated audio processing solution designed for
routing, mixing, and managing multiple audio signals across complex setups. It is widely used in
professional environments such as conference rooms, live performances, broadcasting studios,
and large-scale installations
The system support high resolution audio sample rates, ensuring minimal distortion and dynamic
range for crystal clear sound reproduction. 16 balanced analog inputs and outputs using Phoenix
connectors supporting both microphone and line-level signals. Full matrix routing allows any input
to be mapped to any output, with adjustable gain per crossover point.
Includes 31-band graphic EQ and 8 band parametric EQ, compressors, limiters, noise gates and
automatic gain control for precise tonal shaping and dynamic management. Build-in RJ45 ports
enable Ethernet control, supporting TCP/IP protocols for remote management across network
segments.
- 16 analog inputs and 16 analog outputs, support to select Line level and Mic level.
- Dante network audio 16×16 in option.
- Support 48V phantom for each Mic level input, 40 level sensitivity (1dB in step).
- Built-in AFC(feedback cancellation) , 2 level to select.
- Built-in AEC(echo cancellation) for remote video-conference system.
- Built-in ANC(noise cancellation) for optimizing local meeting system.
- Built-in AGC(automatic gain control) for optimizing microphone signals in complex scenarios.
- Support auto mix and matrix mix.
- Support camera tracking with most of camera control.
- Support presets archiving and locking, help project to hide parameters of setting.
- conference rooms
- live performances
- broadcasting studios
- large-scale installations
| DSP Process | |
| Process | 32bit float point DSP 400MHz |
| System Delay | <3ms |
| AD/DA70V/100V | 24-bit 48KHz |
| Analog Audio Inputs and Outputs | |
| Input | 4X4 channels balanced |
| Input Interface | 3.81mm phoenix, 12-pin |
| Input Impedance | 9.4KΩ/Balance; 4.7KΩ/Unbalance |
| Max Input Level | 17dBu/Line; -3dBu/Mic@20dB sensitivity |
| Phantom Supply | +48V DC, 5.5mA in each input channel |
| Output | 4X4 channels balanced. Line level |
| Output Interface | 3.81mm phoenix, 12-pin |
| Output Impedance | 100Ω/Balance; 50Ω/Unbalance |
| Audio Performance Specifications | |
| Frequency Response | 20Hz-20kHz(+-0.5dB)/Line, input 0dBu; 20Hz-20kHz(+-1.5dB)/Mic, 20dB gain sensitivity, input -10dBu |
| THD+N | -90dB(@17dBu, 1kHz, A-wt)/Line -90dB(@-6dBu, 1kHz, A-wt)/Mic, 20dB gain sensitivity |
| SNR | 110dB(@17dBu, 1kHz, A-wt)/Line 100dB(@-6dBu, 1kHz, A-wt)/Mic, 20dB gain sensitivity |
| Connect Ports and Indicators | |
| USB | Type B, free driver |
| RS485 | Serial port communication |
| TCP/IP Interface | RJ-45 |
| Indicator Light | Input signal, +48V, Link, Output signal |
| Electrical and Physical | |
| Supply | AC 190V～264V 50/60 Hz |
| Product Dimensions | 488mmx260mmx44mm |
| Package Dimensions | 555mmx325mmx98mm |
| Net Weight | 4.3kg |
| Package Weight | 5kg |
| OperatingTemperature | -20℃～80℃ |
