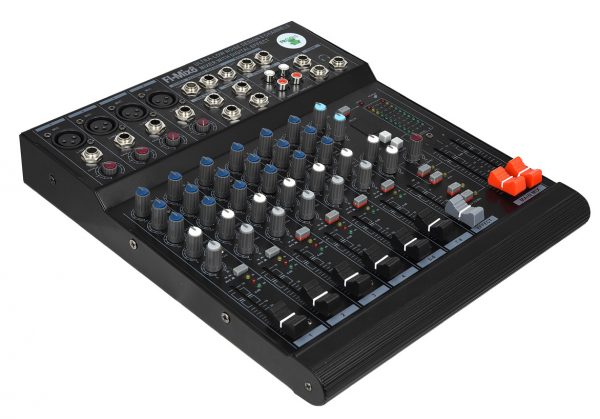

FI-Mix8
Ultra-low noise design 8 channels mixer with digital effects
The FI-Mix8 compact mixer has a natural sound with outstanding parameters
and optimal user-friendliness as well as maximum dependability in day-to-day operation on the road.
The FI-Mix8 is reliably rugged, with the proven quality you expect from Frog-is. An amazing value, the mixer delivers a straightforward feature set that’s easy to use and the sound quality you need in rugged designs built to last.
Plus, with its rugged metal chassis and high-quality components throughout, the FI-Mix8 is a solid investment in reliability.
Features
Applications
Specifications
- 4 channel MIC and 4 channel stereo line input
- 2 main outputs, 2 channel monitor output, 1 Aux output
- Outstanding performance with excellent noise behavior
- High-quality potentiometers/faders with smooth feel
- Robust construction for long service life
- Global +48V phantom power for condenser microphones
- Control room/Phones source matrix for monitor flexibility
- Input channels with 3-band EQ, 45mm faders, main output 60mm faders
- SMT technology
- Especially high headroom and dynamic range
- Extra low-distortion preamps
- Whether live on stage, home/project recording or installations of all kinds such as community centers, churches, and bars/bistros, the MT8 offers the right solution for many applications.
| Mic Input (Mono) | |
| Mic Input | Electronically balanced |
| Bandwith | 10 Hz to 60 KHz at -3 dB, 20 Hz to 20 KHz +/- 1 dB |
| Distortion (TDH & N) | <0.01% at +4 dBu, 1 KHz, bandwith 80 KHz |
| Phantom Power for MIC | +48V |
| Line Input (Mono) | |
| Line Input | Electronically balanced |
| Bandwith | 10 Hz to 60 KHz at -3 dB, 20 Hz to 20 KHz +/- 1 dB |
| Distortion (TDH & N) | <0.01% at +4 dBu, 1 KHz, bandwith 80 KHz |
| Line level range | +10 dBu to -40 dBu |
| Line Input (Stereo) | |
| Line Input | Unbalanced |
| Bandwith | 10 Hz to 55KHz at -3 dB |
| Distortion (TDH & N) | <0.01% at +4 dBu, 1 KHz, bandwith 80 KHz |
| Equalization | |
| High | 12 KHz +/- 15 dB |
| Mid | 2.5 KHz +/- 15 dB |
| Low | 80 KHz +/- 15 dB |
| Frequency swing & Gain | Frequency swing <8% Gain: ±15dB |
| Effector | 16 kinds of digital delay |
| Clipping indicator light | Indicator 3dB earlier than cutting wave level |
| Master Mix section | |
| Max Output | +22 dBu balanced |
| Aux Send Max Out | +22 dBu balanced |
| Control Room Out | +22 dBu balanced |
| Signal To Noise Ratio | >112 dB, all channels at Unity Gain |
| Phone Output | Mono: -5dB±1.5dB @ 1KHz 32Ω, Stereo: +2dB±1.5dB @ 1KHz 32Ω |
| Power supply | |
| USA / Canada | 110VAC, 60Hz |
| U.K. / Australia | 240VAC, 50Hz |
| China | 220VAC, 50Hz |
| Net Weight | 2.7 Kg |
| Product dimensions (W × D × H) | 253 × 272 × 43 mm |
