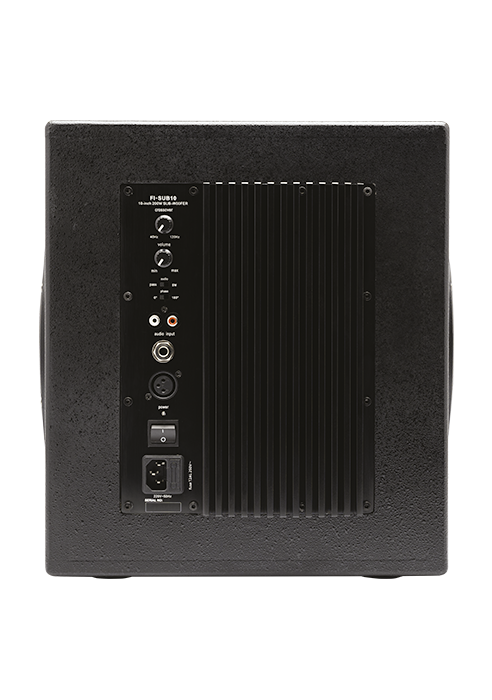

FI-Sub10A
10" Active Subwoofer w/ 2 x 10" passive Radiators, 200W Amplifier
The Fi-Sub10P is an ultra-compact cubic active subwoofer dedicated to the installation market.
The front firing 10” woofer is back loaded by two side 10” passive radiators, providing an extreme low frequency extension for it’s modest size.
Features
Applications
Specifications
- Extreme discreet look
- Extreme low end extension
- High efficiency, allowing supporting multiple full range installation speakers
- High power 200W Class AB amplifier
- Multiple controls allowing adjusting of level, LPF frequency, Phase
- Ideal for larger size cafés, restaurants, lounges, house of worship installations
- Ideal for home theatre
| Acoustics | |
| Frequency response | 40 Hz – 150 Hz |
| Power handling | 250W |
| SPL | 114dB Cont. – 120dB Peak |
| Impedance | 4 Ohms |
| Transducers | 10” with dual passive radiator |
| Amplifiers | |
| Power Voltage | Fixed 110V or 220V |
| Operating Voltage | 110V (100V to 125V) 220V (200V to 245V) |
| Max Output 1% THD | 200 Watts @ 4 Ohms |
| Protections | Short Circuit, Thermal, Overload |
| Physical | |
| Net Weight | 15.7 Kg (34.5 lb) |
| Dimensions WxHxD | 32 cm x 36 cm x 33 cm (12.6” x 14” x 13”) |
