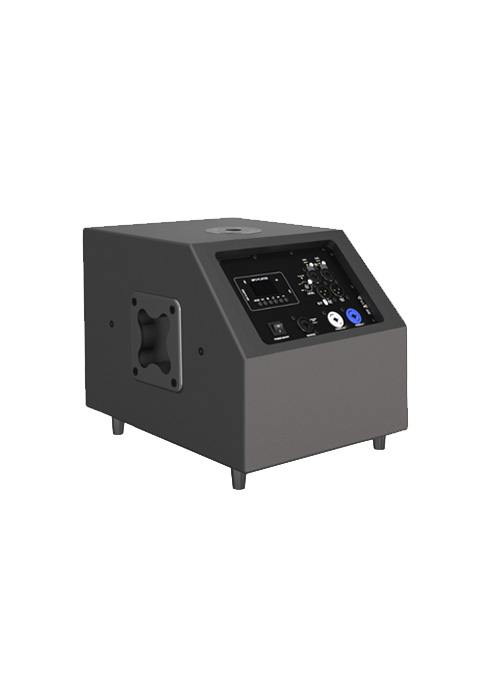

FS-Sub15
Self-powered 15” subwoofer
The FS-Sub15 is a compact self-powered 15” subwoofer. The down firing 15” woofer combined with a large bass reflex acoustic port provides deep and tight bass response.
The dual 600 W class D amplifier allows powering a second FS-Sub15P passive subwoofer.
Features
Applications
Specifications
- Compact Plug and Play subwoofer
- Built-in DSP for EQ and dynamic limiter
- Extremely efficient 15’’ woofer provides incredibly deep bass and acoustic power
- Equipped with handles for easy carrying
- Provided with Bluetooth technology
- Powers a second FS-Sub15P subwoofer
- Designed, engineered and tuned in Italy
- The FS-Sub15 is ideal for mobile and installed applications
- A good solution for all sizes of indoor/outdoor live event and indoors applications like disco, night club, conference, school auditorium and places of worship
| Acoustics | |
| Frequency response | 38 Hz - 150 Hz (-3dB - +1dB) |
| Power Voltage | 100 - 230 Vac 50-60 Hz |
| Operating Voltage | 90-264 Vac |
| Power rating | 600W + 600W |
| SPL 1W@1mt | 98 dB |
| Maximum SPL | 127 dB (cont.) – 133 dB (peak) |
| Impedence | 4 Ω |
| Transducers | |
| Low Frequency | 15’’ bass reflex |
| Preamp and Processors | |
| Preamplifier | 2 IN on-board with low noise Balanced DSP output on CH2 Input limiter Phantom power on mic inputs (12Vdc) |
| Crossover | Two-way speaker with built-in DSP for EQ and dynamic limiter |
| USB/SD MP3 player : Functions Play, Stop, Pause, FF, Rew. LCD Display. | |
| Amplifiers | |
| Power Voltage | 100-240 Vac , 50-60 Hz |
| Operating Voltage | 90 - 264 V |
| Power Factor | cosΨ = 0,9@360W |
| Max Output @ 1% sine 1Khz | 600 W (@ 4 Ω ) + 600 W ( @ 4 Ω ) |
| Protections | Short Circuit , Thermal Protection ( Power Limiting - Thermal shutdown ) , Overload, High frequency output protection |
| Max Out | 85V peak |
| Gain | 26 dB |
| S/N | 115 dB |
| Damping factor | 8 Ω > 1000 @ 8 Ω |
| Physical | |
| Net Weight | 22 kg (48.4 lb) |
| Dimensions WxHxD | 34,8 cm x 43 cm x 47,5 cm (13.7’’ x 17’’ x 18.7’’) |
