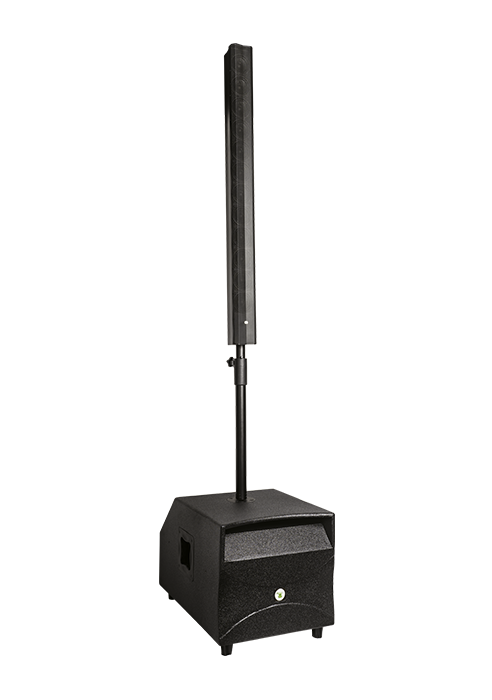

FS15
Portable Line Array PA System - Subwoofer 15’’
FS15 is a manageable PA sound system featuring 12 x 3,25’’ speakers and a 15’’ powerful subwoofer.
The compact line array guarantees high performance in a unique and flexible design. It is unbelievably easy to use and it delivers a perfect sound quality. Sleek and lightweight, its shape has been designed especially for frequently-traveling musicians.
FS15 is a two-way powered PA system ready to be plugged in. The FS15 portable line array PA system features twelve x 3.25’’ mid/high frequency drivers and one 15’’ bass reflex.
It delivers 90 degrees of horizontal coverage and 10 degrees vertical coverage. It has an onboard console with two channels. Provided with Bluetooth technology, it is equipped with handles for easy carrying.
- Compact Plug and Play line array System
- Discreet look for inconspicuous use
- Line array element configuration (12 x 3,25” speakers) offers exceptional sound coverage
- Compact speaker system for concerts, conferences and events and more
- Two-way speaker with built-in DSP for EQ and dynamic limiter
- Extremely efficient 15’’ woofer driver provides incredibly deep bass and acoustic power.
- Equipped with handles for easy carrying
- Provided with Bluetooth technology
- Delivers 90° of horizontal coverage and 10° vertical coverage
- Integrated USB/SD MP3 player
- Designed, engineered and tuned in Italy
- The FS-12 is ideal for mobile and installed applications
- A good solution for all sizes of indoor/outdoor live event and indoors applications like disco, night club, conference, school auditorium and places of worship
| Acoustics | |
| Frequency response | 38 Hz - 19000 Hz (-3dB - +1dB) |
| Power Voltage | 100 - 230 Vac 50-60 Hz |
| Operating Voltage | 90-264 Vac |
| Power rating | 600W + 240W |
| SPL 1W@1mt | 98dB |
| Maximum SPL | 124dB (cont.) - 130 dB (peak) |
| Impedence | 4 Ω + 8 Ω |
| Coverage | |
| Horizontal | 90° |
| Vertical | 10° |
| Transducers | |
| Low Frequency | 15’’ bass reflex |
| High Frequency | 12x3.25’’ array |
| Preamp and Processors | |
| Preamplifier | 2 IN on-board with low noise |
| Preamplifier | Balanced DSP output on CH2 |
| Preamplifier | Input limiter |
| Preamplifier | Phantom power on mic inputs (12Vdc) |
| Microphone input gain | 30dB |
| Crossover | Two-way speaker with built-in DSP for EQ and dynamic limiter |
| USB/SD MP3 player | |
| Amplifiers | |
| Power Voltage | 100-240 Vac , 50-60 Hz |
| Operating Voltage | 90 - 264 V |
| Power Factor | cosΨ = 0,9@360W |
| Max Output @ 1% sine 1Khz | 600 W (@ 4 Ω ) + 600 W ( @ 4 Ω ) |
| Protections | Short Circuit , Thermal Protection ( Power Limiting - Thermal shutdown ) , Overload, High frequency output protection |
| Max Out | 85V peak |
| Gain | 26 dB |
| S/N | 115 dB |
| Damping factor | 8 Ω > 1000 @ 8 Ω |
| Physical | |
| Net Weight | 29 kg (64 lb) |
| Dimensions WxHxD | 34,8 cm x 173,3 cm x 47,5 cm (13.7’’ x 68.2’’ x 18.7’’) |
